SANY Motor Starting Assembly 160102070056A002 for Heavy Duty Truck Starter Motor
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details

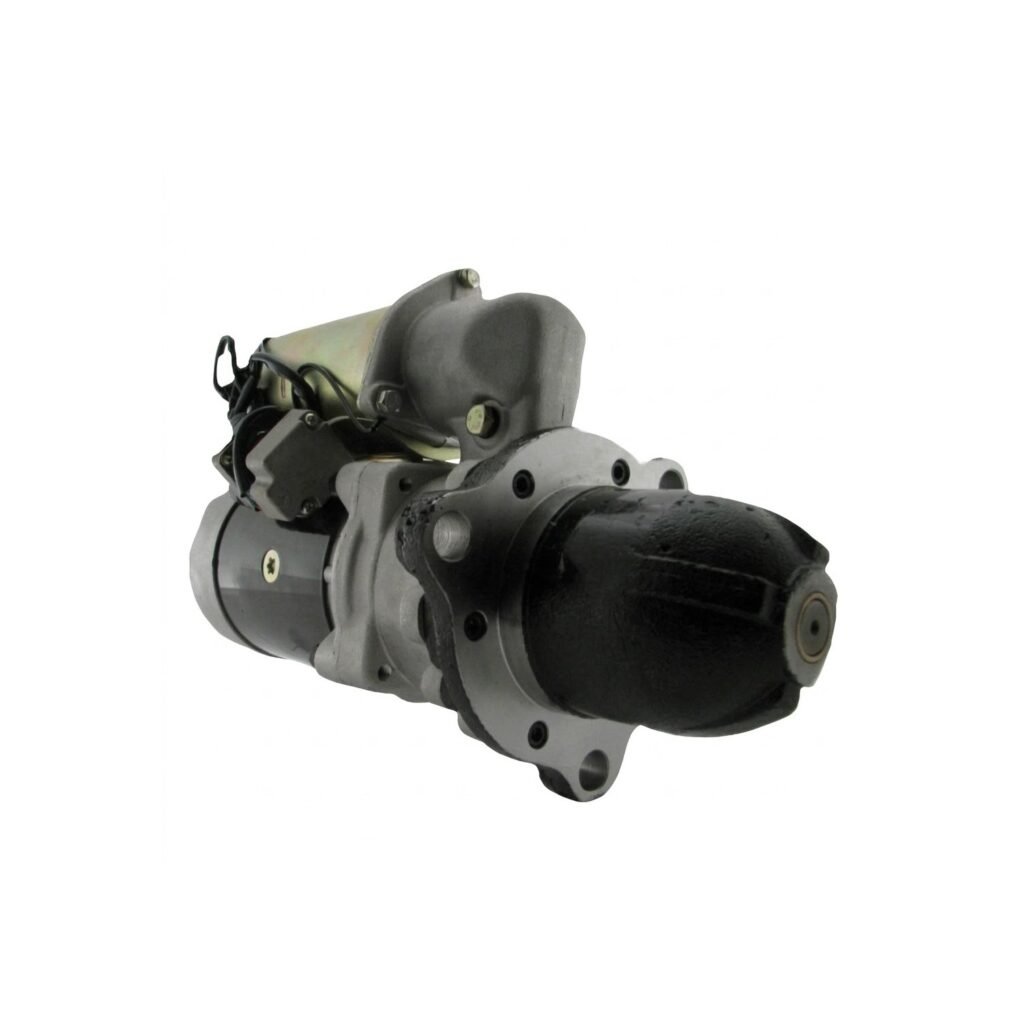

SANY Motor Starting Assembly (160102070056A002)
⚡ High-Torque Heavy Engine Starter Motor for Industrial Commercial Fleets & Heavy Machinery
Product Overview
In high-intensity mining operations, rugged infrastructure jobs, and sub-zero cold start weather cycles, a heavy commercial vehicle’s runtime relies completely on instant engine cranking performance. A weak, slow-turning, or poorly wound internal starter motor causes excessive battery drain, gear grinding against the flywheel ring ring, and eventual total vehicle downtime on the job site. At ARCHER, we distribute premium factory-direct SANY Motor Starting Assemblies (Part Number: 160102070056A002). Built with ultra-thick copper field coils, premium solenoids, and heavy-walled drive housings, this genuine starting module ensures immediate mechanical ignition expansion, protecting critical electronic relays and maximizing fleet uptime under relentless duty demands.
Technical Specifications Table
| Technical Parameter / Attribute | Engineering Specification Details |
|---|---|
| OEM Factory Part Number | 160102070056A002 / 160102070056A002 |
| Equipment Compatibility | SANY Heavy-Duty Dump Trucks, Wide-Body Mining Vehicles, and Specialized Engine Platforms |
| Electrical Voltage System | 24V Standard Industrial Commercial Truck System Layout |
| Pinion Gear Configuration | Case-Hardened, High-Strength Alloy Teeth Profile for Perfect Flywheel Ring Mesh |
| Internal Field Architecture | Heavy Copper Wire Wound Armature with Premium Heat-Insulated Shunting |
| Manufacturing Benchmark | Strict Original SANY Quality Standards and Performance Cranking Validation Passed |
Comprehensive Fleet Applications & Model Coverage
The 160102070056A002 motor starting module represents the precise original electrical specification matching high-output engine platforms in heavy machinery configurations. ARCHER ensures absolute bolt-on mechanical alignment for the following machinery profiles:
🌟 SANY Mining & Heavy Infrastructure Vehicles
Maintains reliable structural ignition and high rotational start force inside dusty quarries and aggregate sites:
• SANY Wide-Body Mining Dump Trucks
• SANY Heavy Infrastructure Excavators and Earthmoving Machinery Platforms
• Heavy High-Tonnage Vocational Rigid Construction Fleets
🌟 Commercial Logistics Concrete & Transport Fleets
Provides rapid starting response curves during multiple on/off cycles throughout urban material delivery routines:
• SANY Heavy Concrete Mixer Truck Fleets
• SANY High-Capacity Concrete Pump Truck Assemblies
• Specialized Multi-Axle Over-the-Road Industrial Prime Movers
Core Performance Advantages
🛡️ Ultra-High Output Cranking Torque
Engineered with premium internal armatures that rapidly convert electrical energy into massive rotational force, slicing through thick engine oil resistance on freezing mornings.
🛡️ Heavy Duty Weather-Proof Solenoid
Equipped with a sealed industrial solenoid valve casing to prevent water ingress, mud build-up, and dust jamming, ensuring clean electrical switching contact points.
🛡️ Tempered Pinion Anti-Wear Gear
The forward drive gear pinion teeth undergo case-hardened heat tempering, ensuring smooth flywheel mesh and eliminating tooth shearing risks.
Technical FAQ
1. What is the fundamental cause of starter motor overheating, and how can workshop mechanics protect the 160102070056A002 unit?
The most common cause of internal thermal failure is cranking the starter motor continuously for too long. Mechanics and operators should never engage the starter key for more than 15 consecutive seconds. If the diesel engine fails to fire, allow the motor assembly to cool down for at least 1 to 2 minutes before attempting another ignition sequence.
2. Should other electrical starting system components be checked when replacing a damaged starter motor?
Yes, absolutely. Before mounting a new 160102070056A002 assembly, workshop technicians must check the truck’s main battery voltage capacity, clean any corrosion off the heavy battery terminal connections, and inspect the main ignition grounding cables. High resistance from loose or dirty cables can choke voltage delivery, making a brand-new starter motor underperform.
3. How can I confirm that the 160102070056A002 starter motor matches my exact SANY fleet engine model?
SANY utilizes distinct starter motors depending on the displacement of the diesel engine (such as Deutz, Weichai, or SANY proprietary power cores). Please check the mounting flange hole dimensions and count the teeth on your original drive pinion gear. Providing your engine data plate tag or vehicle VIN to our sales team will ensure a perfect match before we load your shipping containers.
Request a Factory-Direct Quote Today
Your Trusted Global Supplier for Genuine Heavy Machinery Spare Parts and High-Output Ignition Motor Assemblies.
